Panel Components
Complete panel building solutions — terminal blocks, cable glands, lugs, push buttons, indicators, DIN rails, cable ducts, panel meters, timers, and more from India's most trusted manufacturers. One-stop shop for MCC, PCC, APFC & control panel builders in Maharashtra & Goa.
Our Partner Brands
We stock genuine panel components from India's leading manufacturers. All products meet IS/IEC standards with manufacturer warranty.

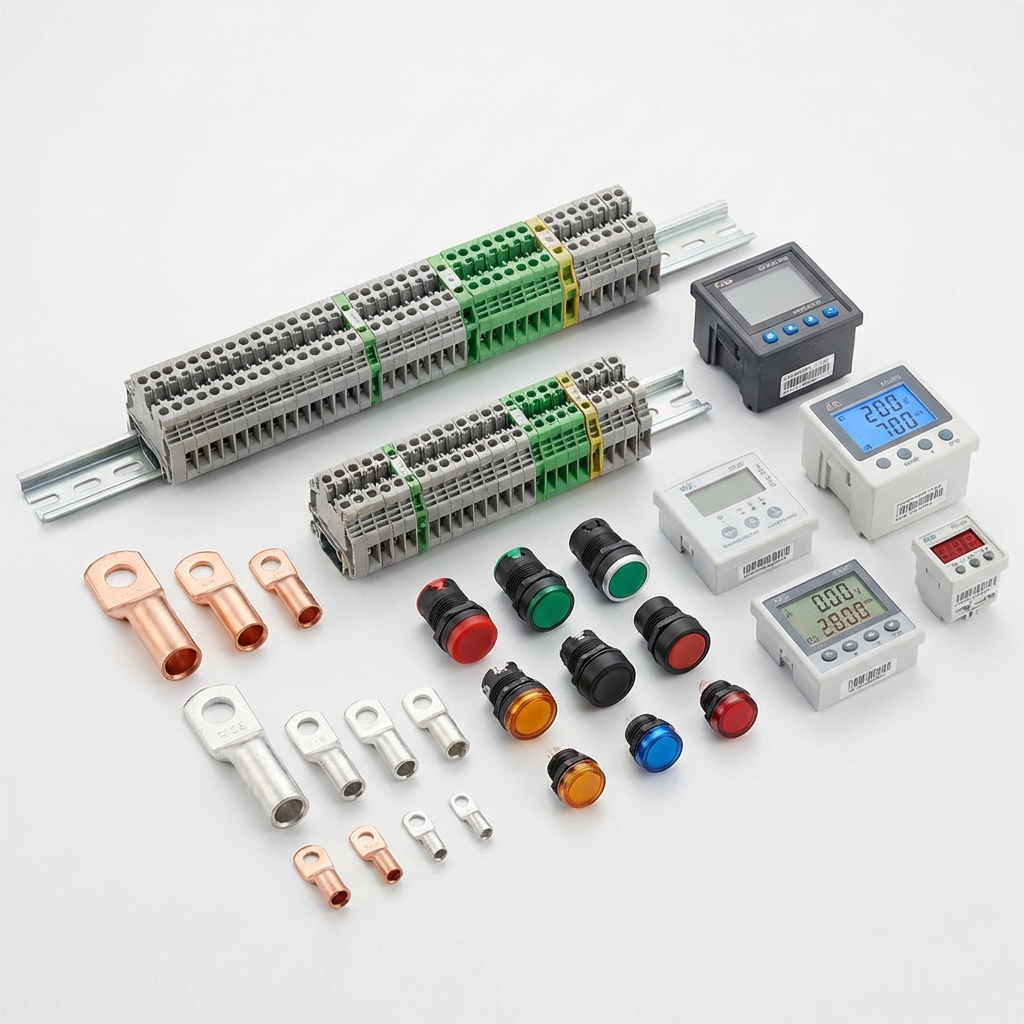

Panel Components & Accessories We Supply
Everything you need for MCC, PCC, APFC, control panel, and distribution panel building — from terminal blocks to panel meters
Terminal Blocks & Connectors
DIN rail mounted terminal blocks for organised and safe panel wiring. Available in screw-type, spring-clamp, and push-in connection technologies for power distribution, signal wiring, and grounding. Fuse terminal blocks provide integrated fuse protection. Manufactured as per IS/IEC 60947-7 standards with UL/CSA approvals.
- Screw-Type Terminals — 2.5 to 240 sq mm, feed-through & multi-level
- Spring-Clamp Terminals — tool-free, vibration-proof connection
- Fuse Terminal Blocks — 5×20mm & 6.3×32mm fuse holders
- Ground/Earth Terminals — PE marked, green-yellow
- Disconnect/Knife Terminals — for test and isolate
- Brands: Elmex, Connectwell, Legrand
Cable Lugs, Glands & Accessories
Cable termination and management products essential for every panel. Copper and aluminium cable lugs for reliable conductor termination. Brass and PG/metric cable glands for IP-rated cable entry into enclosures. Cable ties, ferrules, and markers for organised wiring. Conforming to IS 8309 (lugs) and IS/IEC 62444 (glands).
- Copper Lugs — ring, pin, fork | 1.5 to 400 sq mm
- Aluminium Lugs — bimetallic & standard | 16 to 400 sq mm
- Cable Glands — brass, PG/metric, IP68 rated, flameproof
- Bootlace Ferrules — insulated, 0.25 to 50 sq mm
- Cable Ties — nylon, UV stabilised, 100mm to 450mm
- Brands: Elmex, Connectwell, Comet
Push Buttons, Indicators & Switches
Control panel interface components for operator interaction — push buttons, pilot lights, selector switches, emergency stop buttons, and buzzers. Available in 22mm and 30mm mounting sizes with LED illumination in multiple colours. Designed as per IS/IEC 60947-5 with IP65/IP67 front protection.
- Push Buttons — flush, extended, illuminated, mushroom head
- Emergency Stop — 40mm mushroom, twist-release, key-release
- LED Pilot Lights — 22mm, R/G/Y/B/W, 24V/230V AC/DC
- Selector Switches — 2/3 position, maintained/spring-return
- Panel Buzzers — continuous & intermittent, 24V/230V
- Brands: Teknic, Legrand, Elmex
Panel Meters & Measuring Instruments
Digital and analog panel meters for voltage, current, power, energy, frequency, and power factor measurement. Digital multifunction meters (MFM) provide comprehensive electrical parameter monitoring on a single display. Current transformers (CT) and potential transformers (PT) for meter interfacing. Compliant with IS/IEC 61557 and IS/IEC 62053.
- Digital Multifunction Meters — V, A, kW, kWh, PF, Hz on one display
- Digital Ammeter / Voltmeter — single parameter, 96×96 / 72×72
- Analog Panel Meters — moving iron type, 96×96 / 72×72
- Energy Meters — kWh sub-meters, 1P & 3P, with RS485
- CTs & PTs — moulded case, wound primary, bar type
- Brands: Selec, Elmex, Legrand
Timers, Counters & Controllers
Time control and counting devices for automation, process timing, and production counting. Digital timers with multiple modes — ON delay, OFF delay, cyclic, star-delta. Temperature controllers for heating/cooling process control. Conforming to IS/IEC 61812 standards.
- Digital Timers — ON/OFF delay, cyclic, star-delta, twin
- Programmable Timers — weekly/daily, multiple ON/OFF events
- Digital Counters — preset, totaliser, batch counter
- Temperature Controllers — PID, ON/OFF, J/K/PT100 input
- Hour Meters — running time recording for motors/compressors
- Brands: Selec, Elmex, Teknic
DIN Rails, Cable Ducts & Wiring Accessories
Mounting rails, PVC wire channels (cable ducts), and general wiring accessories for organised panel internal wiring. DIN rails available in 35mm top-hat (TS35) and 32mm G-type profiles. Slotted PVC wire ducts in multiple sizes for neat cable routing. Compliant with IS/IEC 60715 (DIN rails).
- DIN Rails — TS35 (35mm), G32, slotted & unslotted, 1m/2m lengths
- PVC Cable Ducts — slotted, 25×25 to 100×100mm, halogen-free
- End Covers & Separators — for terminal blocks
- Marking Tags — printed & blank, snap-on, for terminals & cables
- Panel Fans & Filters — 120mm/150mm, for enclosure cooling
- Brands: Elmex, Connectwell, Legrand
Essential Panel Building Components Checklist
A quick reference for panel builders to ensure all necessary components are included in MCC, PCC, and control panel BOM
Power Distribution Components
Start with MCCB/MCB for circuit protection, busbar for power distribution, copper lugs for cable termination, cable glands for IP-rated cable entry, and earth bus bar for grounding. Use correctly sized power terminal blocks (35 to 240 sq mm) for incoming and outgoing connections.
Control & Wiring Components
Use DIN rails (TS35) for module mounting, PVC cable ducts for wire routing, control terminal blocks (2.5 to 6 sq mm) for signal wiring, ferrules for multi-strand wire crimping, and cable markers/tags for identification. Add fuse terminal blocks for instrument circuit protection.
Interface & Monitoring
Install push buttons & selector switches for operator control, LED indicators for status display, emergency stop for safety compliance, multifunction meter for electrical monitoring, and CTs for current measurement. Add timers for process automation and temperature controllers where needed.
Where Our Panel Components Are Used
Trusted by panel builders, OEMs, system integrators & contractors across Maharashtra & Goa
MCC & PCC Panels
Motor Control Centre and Power Control Centre panels for industrial plants, MIDC Waluj, Shendra AURIC, and manufacturing units. Complete BOM supply including terminal blocks, power lugs, cable glands, push buttons, meters, and all internal wiring accessories.
Control & Automation Panels
PLC control panels, SCADA panels, VFD panels, and automation systems. Control terminal blocks, screened cable glands, HMI cutouts, selector switches, and signal indicators for process automation in pharma, food, and chemical industries.
Distribution & APFC Panels
Electrical distribution boards and Automatic Power Factor Correction (APFC) panels for commercial buildings, hospitals, hotels, malls, and IT parks. DB accessories, busbar chambers, energy meters, and APFC relay-contactor assemblies.
Solar & DG Set Panels
Solar inverter panels, solar ACDB/DCDB boxes, DG synchronisation panels, and AMF (Auto Mains Failure) panels. DC-rated terminal blocks, surge protection devices, energy meters, and all components for solar & renewable energy panel assemblies.
Specifications, Sizes & Standards
Complete range of panel components meeting Indian and international standards
Why Buy Panel Components from Jay Enterprises?
Your one-stop shop for complete panel building BOM in Chhatrapati Sambhajinagar (Aurangabad) & Goa
Complete Panel BOM Under One Roof
From switchgear to terminal blocks to meters — get your entire panel Bill of Materials from a single source. No need to visit multiple dealers. We stock switchgear, cables, and all panel accessories together.
Best Panel Builder Pricing
Special panel builder discount structure for regular customers. Volume pricing for bulk terminal blocks, glands, and accessories. We understand panel building economics and offer the most competitive rates in the region.
Ready Stock & Fast Dispatch
Extensive inventory of all common panel components at our MIDC Waluj warehouse. Same-day dispatch for most items. Delivery across Chhatrapati Sambhajinagar, Pune, Mumbai, Nashik, Nagpur, and all of Maharashtra & Goa.
Technical Selection Support
Our team helps with terminal block sizing, cable gland selection, meter specification, and overall panel BOM preparation. Free technical consultation for panel builders and OEMs. Full after-sales support with manufacturer warranty.
Frequently Asked Questions About Panel Components
Expert answers to common questions about panel building accessories
What is the difference between screw-type and spring-clamp terminal blocks?
Screw-type terminal blocks use a screw to clamp the conductor — they are the most common type, cost-effective, and available in the widest size range (2.5 to 240 sq mm). They require periodic tightening. Spring-clamp terminal blocks use a spring mechanism for tool-free, vibration-proof connection — ideal for environments with vibration (machines, vehicles) and for faster panel wiring. Spring-clamp terminals maintain consistent contact pressure over time and don't need re-torquing. Both types are available from Elmex and Connectwell at Jay Enterprises.
How to select the right cable gland size for panel wiring?
Cable gland size depends on the outer diameter of the cable (not conductor size). Measure the cable OD and select a gland whose clamping range covers that diameter. Common selections: PG9/M16 for 2-3 core 1.5 sq mm cables, PG13.5/M20 for 2-3 core 2.5 sq mm, PG16/M20 for 4 core 4 sq mm, PG21/M25 for larger cables. For IP68 rating, ensure proper O-ring sealing. For hazardous areas, use flameproof cable glands with ATEX/PESO certification.
What panel components brands do you stock?
We stock panel components from Elmex (terminal blocks, cable glands, lugs), Connectwell (terminal blocks, ferrules, markers), Selec (digital meters, timers, temperature controllers), Teknic (push buttons, indicators, selector switches), and Legrand (DIN rails, cable ducts, MCB enclosures). All products are genuine with manufacturer warranty. Available at our MIDC Waluj warehouse in Chhatrapati Sambhajinagar.
Can you supply complete panel BOM for MCC and PCC panels?
Yes, we provide complete Bill of Materials for MCC, PCC, APFC, control, and distribution panels. This includes switchgear (MCCB, contactors, OLR, starters), terminal blocks, cable glands, lugs, ferrules, push buttons, indicators, meters, CTs, DIN rails, cable ducts, cable ties, panel fans, and all internal wiring accessories. Single-source procurement saves time and reduces logistics cost. Call +91 8767172620 or WhatsApp us with your BOM for competitive pricing.
What is a multifunction meter and why use it in panels?
A Digital Multifunction Meter (MFM) measures and displays multiple electrical parameters simultaneously — voltage (V), current (A), power (kW, kVA, kVAr), energy (kWh), frequency (Hz), and power factor (PF) — all on a single 96×96mm panel cutout. This replaces the need for separate ammeter, voltmeter, frequency meter, and energy meter, saving panel space and cost. Modern MFMs from Selec also offer RS485/Modbus communication for SCADA integration and data logging.
What is the difference between bootlace ferrules and bare wire termination?
Bootlace ferrules (insulated end sleeves) are crimped onto the stripped end of multi-strand flexible wires before inserting into terminal blocks. They prevent wire strand splaying, ensure all strands make contact, provide consistent clamping force, and meet IS/IEC 60947-7 requirements. Bare wire termination without ferrules can lead to loose strands, poor contact, overheating, and fire hazard. Using ferrules is best practice for all professional panel wiring and is mandatory in many industrial standards. Available in sizes 0.25 to 50 sq mm from Elmex and Connectwell.
Do you offer bulk pricing for panel builders and OEMs?
Yes, we offer special panel builder pricing for regular customers and OEMs. Volume discounts available on terminal blocks, cable glands, ferrules, cable ties, DIN rails, and all frequently used panel accessories. We also provide project-based BOM pricing for large panel orders. Flexible payment terms for established panel builders. Call +91 8767172620 or WhatsApp us for a customised quotation.
Which areas do you supply panel components to?
We supply panel components across entire Maharashtra and Goa. Our primary warehouse is in MIDC Waluj, Chhatrapati Sambhajinagar (Aurangabad). Regular deliveries to: Pune, Mumbai, Nashik, Nagpur, Solapur, Kolhapur, Ahmednagar, Jalna, Latur, Beed, Osmanabad, Nanded, Parbhani, and all Marathwada, Western Maharashtra, and Vidarbha regions. In Goa: Panjim, Margao, Vasco, Mapusa, Ponda. Same-day dispatch for in-stock items.
Need Panel Components?
Get instant quotes for complete panel BOM — terminal blocks, cable glands, push buttons, meters, and all accessories! Best wholesale prices for panel builders across Maharashtra & Goa!
